HyperStore Flash 1000 Specifications

HyperStore flash

Sign up for the Cloudian Newsletter

Form Factor 1U rack mount chassis
Metadata Drives 2x U.2 15mm NVMe Flash
Metadata Drive Sizes 3.84TB, 7.68TB, 15.36TB options
Data Drives 10x U.2 15mm NVMe Flash
Drive Sizes 7.68TB and 15.36TB options
Storage Capacity Raw 76.8TB or 153.6TB
Data Protection Replication and erasure coding via storage policies
Redundancy Hot-swappable disk drives
4x hot-swappable power supplies
No single point of failure
Non-disruptive online software upgrades
CPU 2x Intel Xeon Gold 6230R 2.1G, 35.75M Cache, 26C/52T
Memory 256GB
Network Interfaces* 2x 10GBase-T (built-in and available as data ports)
Additional network card options include up to 2x dual-port 10/25GbE NIC,
or 1x dual-port 10/25GbE and 1x dual-port 40/100GbE NIC
Monitoring/Management CLI, GUI, API, IPMI, JMX
Power Supply 1200W Titanium PSU, 1+1 Redundancy, 100-200V AC
Cooling 8 heavy-duty fans w/ optimal fan speed control
Thermal Rating 2700 BTU/hr (max)
Dimensions (W x H x D) 17.2″ x 1.7″ x 29.1″ / 437mm x 43mm x 739mm
Weight 54 lbs (24.5 kg)
IO Ports 2x 10GBase-T RJ45 LAN Ports (built-in)
1x RJ45 LAN Port (Dedicated IPMI Management port)
2x USB 3.0 ports
1x VGA port
1x serial header port
Operating Environment Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)

*SFP transceivers and network cabling not included and must be supplied by the customer.
Note: Alternate server models may be substituted with equivalent specs if supply chain challenges are experienced.

HyperStore 1600 Specifications

hyperfile chassis

Form Factor 1U rackmount chassis
Metadata Drives 2x U.2 7mm NVMe Flash
Metadata Drive Sizes 1.92TB, 3.84TB, 7.68TB options
Data Drives 12x 3.5″ SAS HDD (7200 RPM)
Drive Sizes 10TB, 12TB, 14TB
Storage Capacity Raw 120TB, 144TB, 168TB
Data Protection Replication and erasure coding via storage policies
Redundancy Hot-swappable disk drives
2x hot-swappable power supplies
No single point of failure
Non-disruptive online software upgrades
CPU 2x Intel Xeon Gold 5218R 2.1G 27.5M Cache, 20C/40T
Memory 128GB
Monitoring/Management CLI, GUI, API, IPMI, JMX
Cooling 2 system fan modules
Network Interfaces1,2 10GBaseT (RJ45), 10/25GbE SFP28, 40/100GbE QSFP28
Power Supply2 1+1 redundancy
Option 1: 700W, 100-127/200-240Vac, 50-60Hz, 9.5A/5A or 240Vdc, 5.5A
Option 2: 800W, 100-127/200-240Vac, 50-60Hz, 7.5A/3.5A
Thermal Rating (max)2 Option 1: 2388.4 BTU/hr
Option 2: 2730 BTU/hr
Dimensions (WxHxD)2 Option 1: 17.6″ x 1.7″ x 35.07″ / 448mm x 43.2mm x 890.85mm
Option 2: 17.6″ x 1.7″ x 37.4″ / 448mm x 43.2mm x 950mm
Weight2 Option 1: 66.14 lbs (30 kg max)
Option 2: 65 lbs (29.5 kg max)
IO Ports/Connectivity 1x GbE RJ45 LAN Port (Dedicated IPMI Management port)
2x USB 3.0 ports; 1x VGA port; 1x Micro-USB (serial header port)
Operating Environment Operating Temperature: 5°C to 35°C (~41°F ~ 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 20% to 85% RH (non-condensing)
Non-operating Relative Humidity: 10% to 95% RH (non-condensing)

1SFP transceivers and network cabling not included and must be supplied by the customer.
2Alternate server models may be substituted with similar specs if supply chain challenges are experienced.

HyperStore 4100 Specifications

hyperstore chassis

Form Factor 2 nodes in a 4U rackmount chassis
Metadata Drives 4x U.2 7mm NVMe Flash (2x per node)
Metadata Drive Sizes 1.92TB, 3.84TB, 7.68TB options
Data Drives 70x 3.5” SAS HDD (35x per node, 7200 RPM)
Drive Sizes 10TB, 12TB, 14TB
Storage Capacity Raw 700TB, 840TB, 980TB
Data Protection Replication and erasure coding via storage policies
Redundancy Hot-swappable disk drives
4x hot-swappable power supplies
No single point of failure
Non-disruptive online software upgrades
CPU 4x Intel Xeon Gold 5218R 2.1G 27.5M Cache, 20C/40T (2x per node)
Memory 256GB (128GB per node)
Network Interfaces* 10GBaseT (RJ45), 10/25GbE SFP28, 40/100GbE QSFP28
Monitoring/Management CLI, GUI, API, IPMI
Power Supply 1200W Platinum (nameplate for single PSU)
2+2 redundancy; 100-120/200-240Vac, 50/60Hz, 14/8A
Cooling 5x (4×8056 + 1×6056) dual rotor fan modules (9+1 redundancy)
Thermal Rating (max) 8188.8 BTU/hr (2400W)
Dimensions (W x H x D) 17.6” x 6.9” x 35.91” / 447mm x 175.3mm x 912.2mm
Weight 109.02 lbs (49.45kg) without drives;
286.6 lbs (130kg max) fully populated
IO Ports 1x GbE RJ45 LAN Port (Dedicated IPMI 2.0 Management port)
2x USB 3.0 ports; 1x VGA port; 1x RS232 (serial header port)
Operating Environment Operating Temperature: 5°C to 35°C (~41°F ~ 95°F)
Non-operating Temperature: -40°C to 65°C (-40°F to 149°F)
Operating Relative Humidity: 20% to 85% RH (non-condensing)
Non-operating Relative Humidity: 40% to 90% RH (non-condensing)

*SFP transceivers and network cabling not included and must be supplied by the customer.

HyperStore 4200 Specifications

Form Factor 2 nodes in a 4U rack mount chassis
Metadata Drives 4x U.2 7mm NVMe Flash (2x per node)
Metadata Drive Sizes 1.92TB, 3.84TB, 7.68TB options
Data Drives 60x 3.5” SAS HDD (30x per node, 7200 RPM)
Data Drive Sizes 12TB, 14TB, 16TB
Storage Capacity Raw 720TB, 840TB, 960TB
Data Protection Replication and Erasure coding via storage policies
Redundancy Hot swappable disk drives; 4x hot swappable power supplies
No single point of failure; Non disruptive online software upgrades
CPU 4x Intel Xeon Gold 5218R 2.1G 27.5M Cache, 20C/40T (2x per node)
Memory 512GB (256GB per node)
Network Interfaces* up to 4x dual port NIC (2x per node),
dual port 10GBase-T RJ45, 10/25GbE, and 40/100GbE NIC options
Monitoring/Management CLI, GUI, API, IPMI
Power Supply 2x 2600W Platinum, 1+1 redundancy
100-120/200-240Vac, 50/60Hz, 14/8A
Cooling 6x 10cm counter rotating rotor fan modules
Thermal Rating 8871.6 BTU/hr (2600W)
Dimensions (W x H x D) 17.68″ x 6.96″ x 34.1″ / 449mm x 177mm x 866.14mm
Weight 118 lbs (53.5kg) – chassis without drives
215 lbs (97.52kg max) – fully populated with drives
IO Ports / Connectivity 1x GbE RJ45 LAN Port (Dedicated IPMI 2.0 Management port)
2x USB 3.0 ports; 1x VGA port; 1x RS232 (serial header port)
Operating Environment Operating Temperature: 10°C to 35°C (50°F ~ 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% RH (non-condensing)
Non-operating Relative Humidity: 5% to 95% RH (non-condensing)

*SFP transceivers and network cabling not included and must be supplied by the customer.

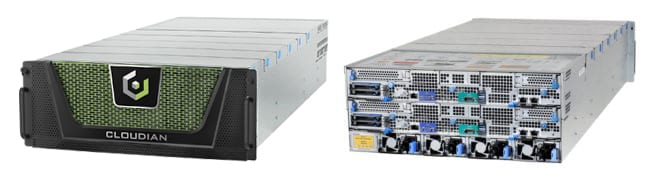

HyperStore Xtreme Specifications

high density storage seagate

Model/Configuration HSX-4516S HSX-4516G
Specifications for various configurations
CPU 2x Intel Xeon Silver 4110
(2.1 GHz, 8C/16T, 11M cache)
2x Intel Xeon Gold 5118
(2.3 GHz, 12C/24T, 16.5M cache)
Memory 256GB (128GB per node) 512GB (256GB per node)
Thermal Rating 7848 BTU/hr (max) 8565 BTU/hr (max)
Weight 330 lbs / 149.7Kg 330.24 lbs. / 149.8Kg
Metadata Drive Sizes 1.92TB 3.84TB
Specifications for either configuration
Metadata Drives 4x 2.5” SAS SSD (2 per node)
Data Drives 96x 3.5” SAS HDD (48 per node, 7200 RPM)
Drive Sizes 16TB
Storage Capacity Raw 1536TB
Form Factor 2 nodes in a 4U rack-mount chassis
Data Protection Replication and erasure coding via storage policies
Redundancy Hot-swappable disk drives
4x hot-swappable power supplies
No single point of failure
Non-disruptive online software upgrades
Network Interfaces* 8x 10GbE (SFP+, 4 per node); 25GbE (SFP28) and 100Gb (QSFP28) options
Monitoring/Management CLI, GUI, API, IPMI, JMX
Power Supply 2x 3200W PSU, 200-240V AC
Cooling (4) 8056 + (1) 6056 dual-rotor fans
Dimensions (W x H x D) 17.4″ x 6.95″ x 44.8″ / 441mm x 176.4mm x 1139mm
IO Ports Rear per node: (1) USB 3.0 port; (1) HDMI port; (1) GbE RJ45 management
Operating Environment Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 70°C (-40°F to 158°F)
Operating relative humidity: 10% to 80%RH
Non-operating relative humidity: 5% to 90%RH

*SFP transceivers and network cabling not included and must be supplied by the customer.

HyperFile 1100 Specifications

HyperFile 1100

HyperFile 1100

Form Factor 1U rack mount chassis
Metadata Drives 2x U.2 7mm NVMe Flash
Metadata Drive Sizes 1.92TB, 3.84TB, 7.68TB options
Additional Drives 2x 2.5” SATA 240GB SSD
Data Drives 10x 3.5” SAS HDD (7200 RPM)
Data Drive Sizes 10TB, 12TB, 14TB
Storage Capacity Raw 100TB, 120TB, 140TB
Data Protection Replication across HyperFile nodes
Redundancy Hot swappable disk drives
2x hot swappable power supplies
No single point of failure
Non disruptive online software upgrades
CPU 2x Intel Xeon Gold 5218R 2.1G 27.5M Cache, 20C/40T
Memory 128GB
Network Interfaces* 10GBaseT (RJ45), 10/25GbE SFP28, or 40/100GbE QSFP28 options
Power Supply 800W Platinum, 1+1 redundancy
100-127/200-240Vac, 50-60Hz, 7.5A/3.5A
Cooling 2 System fan modules
Thermal Rating 2730 BTU/hour
Dimensions (WxHxD) 17.6″ x 1.7″ x 37.4″ / 448mm x 43.2mm x 950mm
Weight 65 lbs (29.5 kg)
IO Ports / Connectivity 1x GbE RJ45 LAN Port (Dedicated IPMI Management port)
2x USB 3.0 ports
1x VGA port
1x Micro-USB (serial header port)
Operating Environment Operating Temperature: 5°C to 35°C (~41°F ~ 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 20% to 85% RH (non-condensing)
Non-operating Relative Humidity: 10% to 95% RH (non-condensing)

*SFP transceivers and network cabling not included and must be supplied by the customer.
