Cloudian HyperFile NAS Controller Datasheet
Cloudian® HyperFile® is a scale-out NAS controller that delivers enterprise file services for Cloudian HyperStore® object storage systems. The HyperFile NAS Controller delivers unified support for file and object storage plus enterprise NAS features—such as SMB/NFS support, POSIX compliance, and WORM protection. With next-generation capabilities like multi-cloud integration and converged data access support, HyperFile is a solution that goes far beyond traditional NAS.
Enterprise File Services Platform

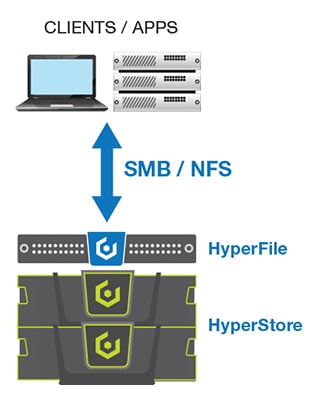

POSIX-compliant file system provides multi-protocol access that is fully compatible with NFS and SMB (CIFS) clients. User authentication via Active Directory and LDAP.

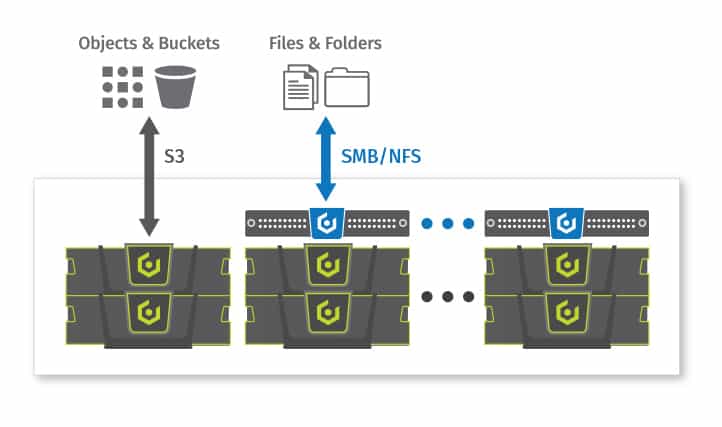

SCALE-OUT FILE SERVICES
Object Versioning for Data Protection
Generate point-in-time copies of filesystem data for data protection by leveraging object versioning.
WORM for Data Immutability
Create non-rewritable, non-erasable data to prevent files from being altered or deleted until a predetermined or default retention date. Multi-tenancy lest you create WORM-enabled storage within a shared environment.
Converged Data Access

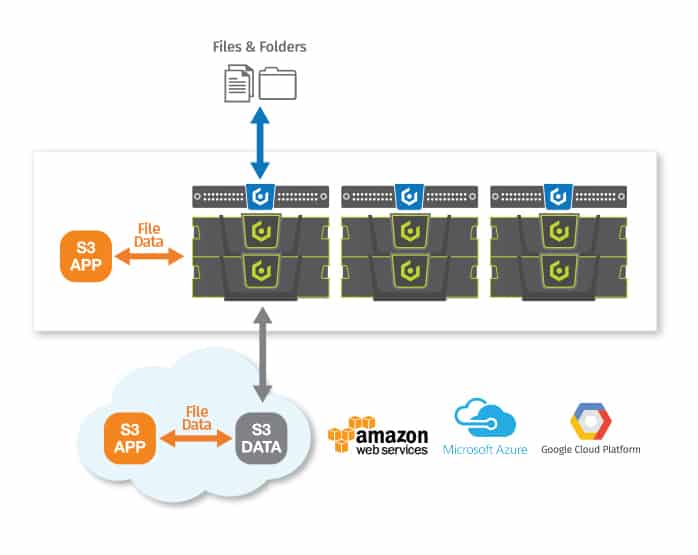

Directly access file data from object storage without traversing the HyperFile controller. S3-enabled applications can directly read and write file data to object storage—on-prem or in the cloud. Write file data with S3 and read with HyperFile or the reverse. Access S3-compatible storage via both file-based apps and S3-compatible apps.
CONVERGED DATA ACCESS & MULTI-CLOUD SUPPORT
Integrated support for Amazon AWS, Microsoft Azure, and Google GCP. Store data on-prem, then replicate or migrate to the cloud platform of your choice.

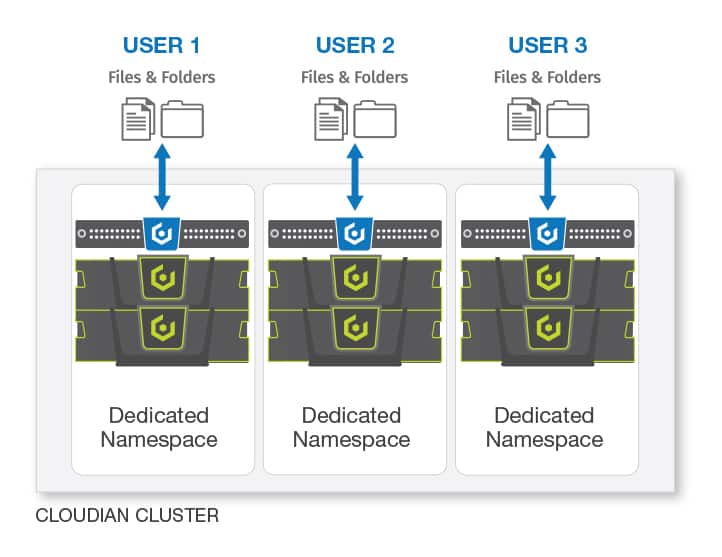

When a single cluster is shared by multiple groups or clients, multi-tenancy lets you assign separate namespaces to each group for isolation and segregated management. QoS at the storage level lets you guarantee performance to each group.
Data Protection and Replication

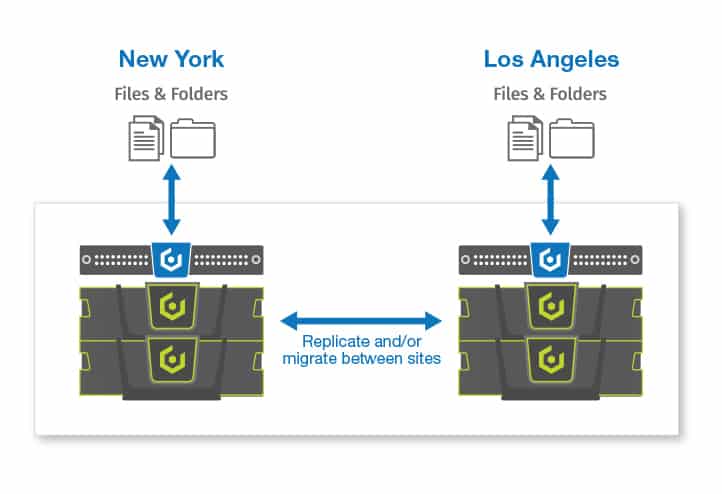

Replicate data to multiple locations for global content distribution. HyperFile can be deployed at remote sites, connected via WAN to a central HyperStore cluster.
DATA PROTECTION AND REPLICATION
Data Migration Engine for Non-Disruptive Implementation

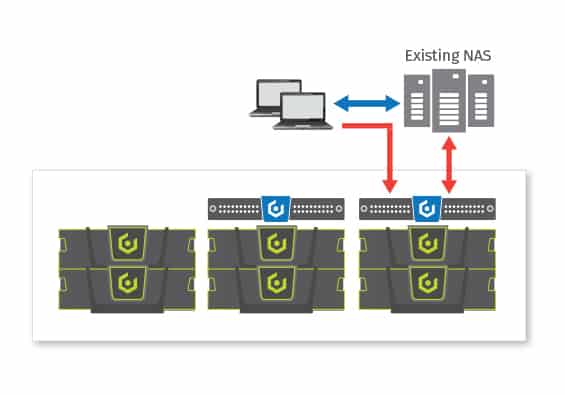

Integrated data migration capabilities help you execute non-disruptive data migration from conventional NAS to Cloudian HyperFile. All migration occurs as a background task, allowing continuous file access during the process.
DATA MIGRATION ENGINE
Each HyperFile NAS Controller includes local caching to accelerate read/write performance. You may select the appropriate cache size for your usage profile to optimize cost vs performance.
Appliance or Virtual Machine
Cloudian HyperFile is available either as a pre-configured, fully-supported appliance or as a virtual machine.
Cloudian HyperFile NAS Controller
Full Suite of Enterprise File Services
Supports users and applications with SMB/NFS/FTP, plus Active Directory and LDAP integration. Snapshot and WORM capabilities.
Limitlessly Scalable Infrastructure Consolidation
Unified storage for both files and objects with limitless capacity scalability and multi-controller support.
New Options for Cloud Integration
Three features combine to open new data management options: Multi-cloud support, converged data access, and data migration/replication.
Multiple levels of redundancy, up to 14 nines data durability, and integrated DR options.
Scale capacity at cloud-like costs. Leverage the latest server and storage technology with pre-configured HA appliances or deploy on the industry-standard servers you choose.
- Media and Entertainment
- Home Directory
- Video Surveillence
- POSIX compliant
- Active Directory and LDAP
- Read and write file caching
Converged Data Access Support
- Access files directly from object storage
- Allows S3-enabled applications to directly read/write file data
Data Migration to S3 Object Storage
- Legacy NAS/file server to HyperFile
- Up to 64 namespaces per controller
- Scales linearly by adding HyperFile controllers
- Object versioning support for point-in-time copies of file system data
- Asynchronous replication allows NAS Controllers to be located across multiple sites with access to a common object storage namespace
- File versioning
- Provides secure data retention
- Data immutability for regulatory compliance

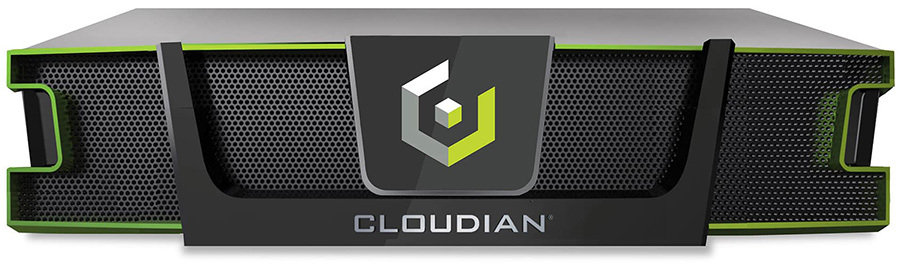

Cloudian HyperFile Appliance
- Single node 1U chassis
- Up to 12x hot-swappable 3.5” disk drives
- Up to 4x hot-swappable 2.5” disk drives
- 10Gbe networking
