Product Specifications

Product Specifications

Cloudian HyperStore and HyperFile Appliances

HyperStore Datasheet

Cloudian® HyperStore® 1600, 4200,
and Flash 1000

HyperStore File Datasheet

Cloudian® HyperStore File 1100


HyperStore Flash 1000 Specifications

HyperStore flash

HyperStore Datasheet

Form Factor1U rack mount chassis
Metadata Drives2x U.2 15mm NVMe Flash
Metadata Drive Sizes3.84TB, 7.68TB, 15.36TB options
Data Drives10x U.2 15mm NVMe Flash
Drive Sizes7.68TB and 15.36TB options
Storage Capacity Raw76.8TB or 153.6TB
Data ProtectionReplication and erasure coding via storage policies
RedundancyHot-swappable disk drives
4x hot-swappable power supplies
No single point of failure
Non-disruptive online software upgrades
CPU2x Intel Xeon Gold 6230R 2.1G, 35.75M Cache, 26C/52T
Memory256GB
Network Interfaces*2x 10GBase-T (built-in and available as data ports)
Additional network card options include up to 2x dual-port 10/25GbE NIC,
or 1x dual-port 10/25GbE and 1x dual-port 40/100GbE NIC
Monitoring/ManagementCLI, GUI, API, IPMI, JMX
Power Supply1200W Titanium PSU, 1+1 Redundancy, 100-200V AC
Cooling8 heavy-duty fans w/ optimal fan speed control
Thermal Rating2700 BTU/hr (max)
Dimensions (W x H x D)17.2″ x 1.7″ x 29.1″ / 437mm x 43mm x 739mm
Weight54 lbs (24.5 kg)
IO Ports2x 10GBase-T RJ45 LAN Ports (built-in)
1x RJ45 LAN Port (Dedicated IPMI Management port)
2x USB 3.0 ports
1x VGA port
1x serial header port
Operating EnvironmentOperating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)

*SFP transceivers and network cabling not included and must be supplied by the customer.
Note: Alternate server models may be substituted with equivalent specs if supply chain challenges are experienced.

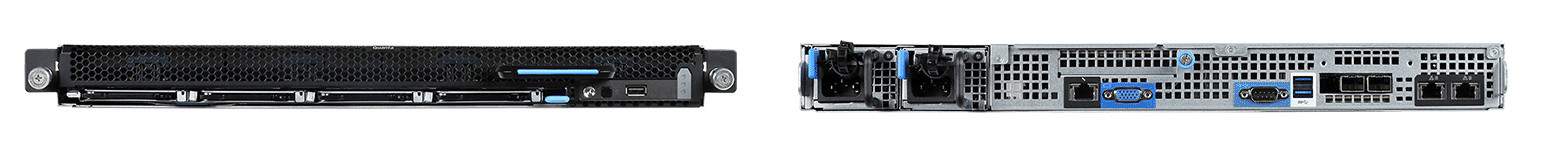

HyperStore 1600 Specifications

hyperfile chassis

HyperStore Datasheet

Form Factor1U rackmount chassis
Metadata Drives2x U.2 7mm NVMe Flash
Metadata Drive Sizes1.92TB, 3.84TB, 7.68TB options
Data Drives12x 3.5″ SAS HDD (7200 RPM)
Drive Sizes10TB, 12TB, 14TB, 16TB, 18TB
Storage Capacity Raw120TB, 144TB, 168TB, 192TB, 216TB
Data ProtectionReplication and erasure coding via storage policies
RedundancyHot-swappable disk drives
2x hot-swappable power supplies
No single point of failure
Non-disruptive online software upgrades
CPU2x Intel Xeon Gold 5218R 2.1G 27.5M Cache, 20C/40T
Memory128GB
Monitoring/ManagementCLI, GUI, API, IPMI, JMX
Cooling2 system fan modules
Network Interfaces1,210GBaseT (RJ45), 10/25GbE SFP28, 40/100GbE QSFP28
Power Supply21+1 redundancy
Option 1: 700W, 100-127/200-240Vac, 50-60Hz, 9.5A/5A or 240Vdc, 5.5A
Option 2: 800W, 100-127/200-240Vac, 50-60Hz, 7.5A/3.5A
Thermal Rating (max)2Option 1: 2388.4 BTU/hr
Option 2: 2730 BTU/hr
Dimensions (WxHxD)2Option 1: 17.6″ x 1.7″ x 35.07″ / 448mm x 43.2mm x 890.85mm
Option 2: 17.6″ x 1.7″ x 37.4″ / 448mm x 43.2mm x 950mm
Weight2Option 1: 66.14 lbs (30 kg max)
Option 2: 65 lbs (29.5 kg max)
IO Ports/Connectivity1x GbE RJ45 LAN Port (Dedicated IPMI Management port)
2x USB 3.0 ports; 1x VGA port; 1x Micro-USB (serial header port)
Operating EnvironmentOperating Temperature: 5°C to 35°C (~41°F ~ 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 20% to 85% RH (non-condensing)
Non-operating Relative Humidity: 10% to 95% RH (non-condensing)

1SFP transceivers and network cabling not included and must be supplied by the customer.
2Alternate server models may be substituted with similar specs if supply chain challenges are experienced.

HyperStore 4200 Specifications

HyperStore Datasheet

Form Factor2 nodes in a 4U rack mount chassis
Metadata Drives4x U.2 7mm NVMe Flash (2x per node)
Metadata Drive Sizes1.92TB, 3.84TB, 7.68TB options
Data Drives60x 3.5” SAS HDD (30x per node, 7200 RPM)
Data Drive Sizes12TB, 14TB, 16TB, 18TB
Storage Capacity Raw720TB, 840TB, 960TB, 1080TB
Data ProtectionReplication and Erasure coding via storage policies
RedundancyHot swappable disk drives; 4x hot swappable power supplies
No single point of failure; Non disruptive online software upgrades
CPU4x Intel Xeon Gold 5218R 2.1G 27.5M Cache, 20C/40T (2x per node)
Memory512GB (256GB per node)
Network Interfaces*up to 4x dual port NIC (2x per node),
dual port 10GBase-T RJ45, 10/25GbE, and 40/100GbE NIC options
Monitoring/ManagementCLI, GUI, API, IPMI
Power Supply2x 2600W Platinum, 1+1 redundancy
100-120/200-240Vac, 50/60Hz, 14/8A
Cooling6x 10cm counter rotating rotor fan modules
Thermal Rating(max)8871.6 BTU/hr (2600W)
Dimensions (W x H x D)17.68″ x 6.96″ x 34.1″ / 449mm x 177mm x 866.14mm
Weight118 lbs (53.5kg) – chassis without drives
215 lbs (97.52kg max) – fully populated with drives
IO Ports / Connectivity1x GbE RJ45 LAN Port (Dedicated IPMI 2.0 Management port)
2x USB 3.0 ports; 1x VGA port; 1x RS232 (serial header port)
Operating EnvironmentOperating Temperature: 10°C to 35°C (50°F ~ 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% RH (non-condensing)
Non-operating Relative Humidity: 5% to 95% RH (non-condensing)

*SFP transceivers and network cabling not included and must be supplied by the customer.

HyperStore 4400 Specifications

HyperStore 4400 Appliance

  • Ultra-dense 4U platform
  • 2 nodes in 1 chassis
  • 90x hot-swappable 3.5″ disk drives (45 drives per node)
  • Up to 4x hot swappable 2.5” 7mm NVMe drives (including 2x drives for metadata)
  • 10GBaseT (RJ45), 10/25GbE, and 40/100GbE networking options

HyperStore Datasheet

Form Factor2 nodes in a 4U rack mount chassis
Metadata Drives4x U.2 7mm NVMe Flash (2x per node)
Metadata Drive Sizes1.92TB, 3.84TB, 7.68TB options
Data Drives90x 3.5” SAS HDD (45x per node, 7200 RPM)
Data Drive Sizes18TB
Storage Capacity Raw1620TB
Data ProtectionReplication and Erasure coding via storage policies
RedundancyHot swappable disk drives; 4x hot swappable power supplies
No single point of failure; Non disruptive online software upgrades
CPU4x Intel Xeon Gold 5218R 2.1G 27.5M Cache, 20C/40T (2x per node)
Memory1024GB (512GB per node)
Network Interfaces*up to 4x dual port NIC (2x per node), dual port 10GBase-T RJ45, 10/25GbE, and 40/100GbE NIC options
Monitoring/ManagementCLI, GUI, API, IPMI
Power Supply2x 2600W Platinum, 1+1 redundancy 100-120/200-240Vac, 50/60Hz, 14/8A
Cooling6x 10cm counter rotating rotor fan modules
Thermal Rating(max)8871.6 BTU/hr (2600W)
Dimensions (W x H x D)17.68″ x 6.96″ x 42.9″ / 449mm x 177mm x 1091mm
Weight150 lbs (68.04 kg) – chassis without drives
240 lbs (108.86 kg) – fully populated with drives
IO Ports / Connectivity1x GbE RJ45 LAN Port (Dedicated IPMI 2.0 Management port)
2x USB 3.0 ports; 1x VGA port; 1x RS232 (serial header port)
Operating EnvironmentOperating Temperature: 10°C to 35°C (50°F ~ 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% RH (non-condensing)
Non-operating Relative Humidity: 5% to 95% RH (non-condensing)

*SFP transceivers and network cabling not included and must be supplied by the customer.

HyperStore File Services 1100 Specifications

HyperFile 1100
HyperFile 1100

HyperStore File Services Datasheet

Form Factor1U rack mount chassis
Metadata Drives2x U.2 7mm NVMe Flash
Metadata Drive Sizes1.92TB, 3.84TB, 7.68TB options
Write Cache Drives2x U.2 7mm NVMe Flash
Data Drives12x 3.5” SAS HDD (7200 RPM)
Data Drive Sizes10TB, 12TB, 14TB
Storage Capacity Raw120TB, 144TB, 168TB
Data ProtectionReplication across HyperStore File nodes
RedundancyHot swappable disk drives
2x hot swappable power supplies
No single point of failure
Non disruptive, online software upgrades
CPU2x Intel Xeon Gold 5218R 2.1G 27.5M Cache, 20C/40T
Memory128GB
Network Interfaces*10GBaseT (RJ45), 10/25GbE SFP28, or 40/100GbE QSFP28 options
Power Supply800W Platinum, 1+1 redundancy
100-127/200-240Vac, 50-60Hz, 7.5A/3.5A
Cooling2 System fan modules
Thermal Rating2730 BTU/hour
Dimensions (WxHxD)17.6″ x 1.7″ x 37.4″ / 448mm x 43.2mm x 950mm
Weight62 lbs (28.12 kg)
IO Ports / Connectivity1x GbE RJ45 LAN Port (Dedicated IPMI Management port)
2x USB 3.0 ports
1x VGA port
1x Micro-USB (serial header port)

*SFP transceivers and network cabling not included and must be supplied by the customer.
